Simple Contrastive Learning Representation using the STL10 dataset in PyTorch

Introduction

As you know classical Machine Learning consists of various tasks. The most popular and heard-of are "Supervised", "Unsupervised" and "Reinforcement" tasks. But there are many more other types of tasks, like "Semi-Supervised" and "Self-Supervised" for instance.

Literally, I would like to pay your attention to "Unsupervised" and "Self-Supervised". Try to answer what they differ from each other? Actually it is hot discussion topic nowadays as well, but from my point of view the main difference is that:

  • Unsupervised: there are no corresponding labels for the data. (mostly this term is applied to Machine Learning tasks)
  • Self-Supervised:  is a bit more complex. It relies on the unsupervised system but makes its own labels. (mostly this term is applied for Computer Vision tasks). I.e.: self-supervised is a family of techniques for converting an unsupervised learning problem into a supervised one by creating surrogate labels from the unlabeled dataset.

SimCLR is a Self-Supervised algorithm. You should keep in mind that, as a part of the framework, we will generate labels for unlabeled STL10 dataset.

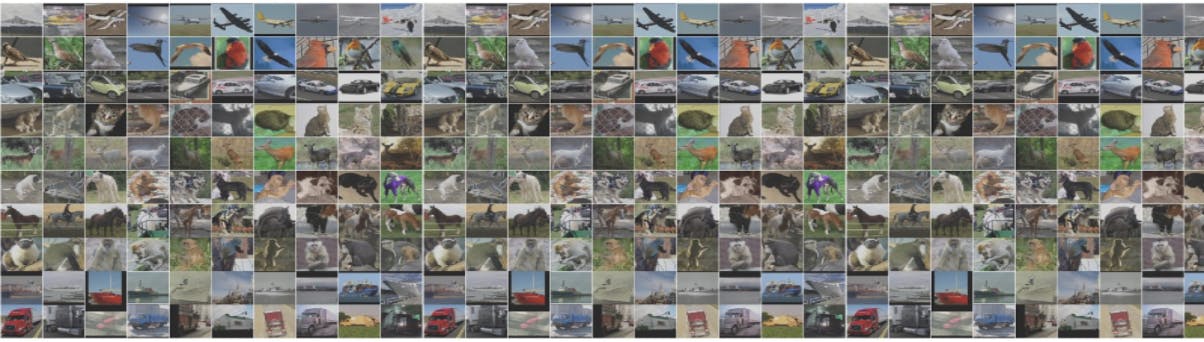

STL10 dataset

The STL-10 dataset is an image recognition dataset useful for developing unsupervised feature learning, deep learning, self-taught learning algorithms. It is inspired by the CIFAR-10 dataset but with some modifications.

In particular, each class has fewer labeled training examples than in CIFAR-10, but a very large set of unlabeled examples is provided to learn image models prior to supervised training. The primary challenge is to make use of the unlabeled data (which comes from a similar but different distribution from the labeled data) to build a useful prior.

SimCLR

In general, SimCLR is a simple framework for contrastive learning of visual representations. It’s a set of fixed steps that one should follow in order to train high-quality image embeddings.

SimCLR pipeline

  1. Take an input image
  2. Generate 2 random augmentations on the image, including rotations, hue/saturation/brightness changes, zooming, cropping, etc.
  3. Pass them through a ResNet50 model to obtain image representations (embeddings) of those augmented images.
  4. Pass the result through a MLP (Multi Layer Perceptron) to project embeddings into another vector space.
  5. Calculate the contrastive loss and run backpropagation through both networks.

Note that this pipeline uses contrastive loss as its loss function. The formal definition is:

The final loss is an arithmetic mean of the losses for all positive pairs in the batch:

Contrastive loss has some useful properties:

  1. Contrastive loss decreases when projections of augmented images coming from the same input image are similar.
  2. For two augmented images: (i), (j) (coming from the same input image—I will call them a "positive" pair later on), the contrastive loss for (i) tries to identify (j) among other images ("negative" examples) that are in the same batch.

Initializing a Spell workspace

Now that we have familiarized ourselves with the data, and with the main concepts of SimCLR framework, let’s start implementing the pipeline!

Firstly we need an environment to work in, including a GPU. For that, we need create a new workflow within Spell. To do that we have few options. In this tutorial, we will use Spell CLI. If you would like to know and apply other approaches, check out my other tutorial.

Open your terminal in a preferable location and follow the steps below:

$ mkdir Spell-SimCLR && cd Spell-SimCLR

# Navigate to the GitHub account and create plaint repository named Spell-SimCLR
# Once you did it, follow steps below

$ echo "# Hey, SimCLR" >> README.md
$ git init
$ git add -A && git commit -m 'Initialised repository with README.'
$ git remote add origin https://github.com/<GitHub-Name>/Spell-SimCLR.git
$ git push -u origin master

# create the workflow  within the just created github repository
$ spell jupyter --machine-type K80 --framework pytorch --pip efficientnet_pytorch SimCLR-CLI

After you will see following window:

Okay, now we have prepared and launched the environment as well as GitHub repository to store the project!

Now for the code. We will split our approach into following sub-parts:

  1. Obtain and explore data
  2. Define the loss function
  3. Define the utility functions for image augmentations
  4. Define SimCLR neural network for embeddings + train
  5. Build an image classifier on top of SimCLR embeddings + train
  6. Evaluate

Obtain and explore the data

import random
import numpy as np
from argparse import Namespace

import torch
from torch import nn
import torch.nn.functional as F
from torch.optim import RMSprop
from torch.multiprocessing import cpu_count
from torch.utils.data import Dataset, DataLoader, SubsetRandomSampler, SequentialSampler
from torch.optim.lr_scheduler import CosineAnnealingLR

from torchvision import transforms
from torchvision.datasets import STL10
import torchvision.transforms.functional as tvf

from efficientnet_pytorch import EfficientNet

import pytorch_lightning as pl


# Download data
stl10_unlabeled = STL10(".", split="unlabeled", download=True)

# plot few images
# Images are stored within PIL.Image.Image wrapper
for _ in range(1, 5):
    plt.figure(figsize=(7, 5))
    image_index = random.randint(10000)
    image_object = stl10_unlabeled[image_index][0]
    plt.title(f Category: {image_object.category} with size:{image_object.size}')
    plt.imshow(image_object)
    plt.show()

Define the loss function

class ContrastiveLoss(nn.Module):
   def __init__(self, batch_size, temperature=0.5):
       super().__init__()
       self.batch_size = batch_size
       self.register_buffer("temperature", torch.tensor(temperature))
       self.register_buffer("negatives_mask", (~torch.eye(batch_size * 2, batch_size * 2, dtype=bool)).float())

   def forward(self, emb_i, emb_j):
       """
       emb_i and emb_j are batches of embeddings, where corresponding indices are pairs
       z_i, z_j as per SimCLR paper
       """
       z_i = F.normalize(emb_i, dim=1)
       z_j = F.normalize(emb_j, dim=1)

       representations = torch.cat([z_i, z_j], dim=0)
       similarity_matrix = F.cosine_similarity(representations.unsqueeze(1), representations.unsqueeze(0), dim=2)

       sim_ij = torch.diag(similarity_matrix, self.batch_size)
 sim_ji = torch.diag(similarity_matrix, -self.batch_size)
       positives = torch.cat([sim_ij, sim_ji], dim=0)

       nominator = torch.exp(positives / self.temperature)
       denominator = self.negatives_mask * torch.exp(similarity_matrix / self.temperature)

       loss_partial = -torch.log(nominator / torch.sum(denominator, dim=1))
       loss = torch.sum(loss_partial) / (2 * self.batch_size)
       return loss

Utility functions for images augmentation

class ResizedRotation():
   def __init__(self, angle, output_size=(96, 96)):
       self.angle = angle
       self.output_size = output_size

   def angle_to_rad(self, ang): return np.pi * ang / 180.0

   def __call__(self, image):
       w, h = image.size
       new_h = int(np.abs(w * np.sin(self.angle_to_rad(90 - self.angle))) + np.abs(h * np.sin(self.angle_to_rad(self.angle))))
       new_w = int(np.abs(h * np.sin(self.angle_to_rad(90 - self.angle))) + np.abs(w * np.sin(self.angle_to_rad(self.angle))))
       img = tvf.resize(image, (new_w, new_h))
       img = tvf.rotate(img, self.angle)
       img = tvf.center_crop(img, self.output_size)
       return img

class WrapWithRandomParams():
   def __init__(self, constructor, ranges):
       self.constructor = constructor
       self.ranges = ranges

   def __call__(self, image):
       randoms = [float(np.random.uniform(low, high)) for _, (low, high) in zip(range(len(self.ranges)), self.ranges)]
       return self.constructor(*randoms)(image)

def random_rotate(image):
   if random.random() > 0.5:
       return tvf.rotate(image, angle=random.choice((0, 90, 180, 270)))
   return image
class PretrainingDatasetWrapper(Dataset):
   def __init__(self, ds: Dataset, target_size=(96, 96), debug=False):
       super().__init__()
       self.ds = ds
       self.debug = debug
       self.target_size = target_size
       if debug:
           print("DATASET IN DEBUG MODE")


       self.preprocess = transforms.Compose([
               transforms.ToTensor(),
               transforms.Normalize(mean=[0.485, 0.456, 0.406], std=[0.229, 0.224, 0.225]),
       ])

       random_resized_rotation = WrapWithRandomParams(lambda angle: ResizedRotation(angle, target_size), [(0.0, 360.0)])
       self.randomize = transforms.Compose([
           transforms.RandomResizedCrop(target_size, scale=(1/3, 1.0), ratio=(0.3, 2.0)),
           transforms.RandomChoice([
               transforms.RandomHorizontalFlip(p=0.5),
               transforms.Lambda(random_rotate)
           ]),
           transforms.RandomApply([
               random_resized_rotation
           ], p=0.33),
           transforms.RandomApply([
               transforms.ColorJitter(brightness=0.5, contrast=0.5, saturation=0.5, hue=0.2)
           ], p=0.8),
           transforms.RandomGrayscale(p=0.2)
       ])

   def __len__(self): return len(self.ds)

   def __getitem_internal__(self, idx, preprocess=True):
       this_image_raw, _ = self.ds[idx]

       if self.debug:
           random.seed(idx)
           t1 = self.randomize(this_image_raw)
           random.seed(idx + 1)
           t2 = self.randomize(this_image_raw)
       else:
           t1 = self.randomize(this_image_raw)
           t2 = self.randomize(this_image_raw)

       if preprocess:
           t1 = self.preprocess(t1)
           t2 = self.preprocess(t2)
       else:
           t1 = transforms.ToTensor()(t1)
           t2 = transforms.ToTensor()(t2)

       return (t1, t2), torch.tensor(0)

   def __getitem__(self, idx):
       return self.__getitem_internal__(idx, True)

   def raw(self, idx):
       return self.__getitem_internal__(idx, False)

## Apply Augmentations
idx = 123
random_resized_rotation = WrapWithRandomParams(lambda angle: ResizedRotation(angle), [(0.0, 360.0)])

dataset = PretrainingDatasetWrapper(stl10_unlabeled, debug=False)
tvf.to_pil_image(dataset[idx][0][0]) # augmented image
tvf.to_pil_image(dataset.raw(idx)[0][0]) # corresponding original image

Defining the SimCLR neural network

Here we define the ImageEmbedding neural network which is based on EfficientNet-b0 architecture. We change the last layer of pre-trained EfficientNet with identity function and add projection for image embeddings on top of it with "Linear-ReLU-Linear" layers.

class ImageEmbedding(nn.Module):
   class Identity(nn.Module):
       def __init__(self): super().__init__()

       def forward(self, x):
           return x

   def __init__(self, embedding_size=1024):
       super().__init__()

       base_model = EfficientNet.from_pretrained("efficientnet-b0")
       internal_embedding_size = base_model._fc.in_features
       base_model._fc = ImageEmbedding.Identity()

       self.embedding = base_model
 self.projection = nn.Sequential(
           nn.Linear(in_features=internal_embedding_size, out_features=embedding_size),
           nn.ReLU(),
           nn.Linear(in_features=embedding_size, out_features=embedding_size)
       )

   def calculate_embedding(self, image):
       return self.embedding(image)

   def forward(self, X):
       image = X
       embedding = self.calculate_embedding(image)
       projection = self.projection(embedding)
       return embedding, projection


class ImageEmbeddingModule(pl.LightningModule):
   """PyTorch-Lightning-based training module that orchestrates everything together:
        hyper-parameters handling
        SimCLR ImageEmbedding network
        STL10 dataset
        optimizer
        forward step
   """

   def __init__(self, hparams):
       hparams = Namespace(**hparams) if isinstance(hparams, dict) else hparams
       super().__init__()
       self.hparams = hparams
       self.model = ImageEmbedding()
       self.loss = ContrastiveLoss(hparams.batch_size)

   def total_steps(self):
       return len(self.train_dataloader()) // self.hparams.epochs

   def train_dataloader(self):
       return DataLoader(PretrainingDatasetWrapper(stl10_unlabeled,
                                                   debug=getattr(self.hparams, "debug", False)),
                         batch_size=self.hparams.batch_size,
                         num_workers=cpu_count(),
                         sampler=SubsetRandomSampler(list(range(hparams.train_size))),
                      drop_last=True)

   def val_dataloader(self):
       return DataLoader(PretrainingDatasetWrapper(stl10_unlabeled,
                                                   debug=getattr(self.hparams, "debug", False)),
                         batch_size=self.hparams.batch_size,
                         shuffle=False,
                         num_workers=cpu_count(),
                         sampler=SequentialSampler(list(range(hparams.train_size + 1, hparams.train_size + hparams.validation_size))),
                         drop_last=True)

   def forward(self, X):
       return self.model(X)

   def step(self, batch, step_name = "train"):
       (X, Y), y = batch
       embX, projectionX = self.forward(X)
       embY, projectionY = self.forward(Y)
       loss = self.loss(projectionX, projectionY)
       loss_key = f"{step_name}_loss"
       tensorboard_logs = {loss_key: loss}

       return { ("loss" if step_name == "train" else loss_key): loss, 'log': tensorboard_logs,
                       "progress_bar": {loss_key: loss}}

   def training_step(self, batch, batch_idx):
       return self.step(batch, "train")

   def validation_step(self, batch, batch_idx):
       return self.step(batch, "val")

   def validation_end(self, outputs):
       if len(outputs) == 0:
           return {"val_loss": torch.tensor(0)}
       else:
           loss = torch.stack([x["val_loss"] for x in outputs]).mean()
           return {"val_loss": loss, "log": {"val_loss": loss}}

   def configure_optimizers(self):
       optimizer = RMSprop(self.model.parameters(), lr=self.hparams.lr)
       return [optimizer], []

# define Neural Net parameters
hparams = Namespace(
    lr=1e-3,
    epochs=50,
    batch_size=160,
    train_size=10000,
    validation_size=1000
)

module = ImageEmbeddingModule(hparams)
trainer = pl.Trainer(gpus=1, max_epochs=hparams.epochs)

trainer.fit(module)

We could also use Spell’s Weights & Biases integration to keep track of the experiments. But today we will skip this option.

After the training finishes, the embeddings will be ready for usage for the downstream tasks.

Training and evaluation

Once we trained the embeddings, we can use them to train the classifier. We will freeze the base network with embeddings and learning linear classifiers on top of it.

# Save the weights
checkpoint_file = "efficientnet-b0-stl10-embeddings.ckpt"
trainer.save_checkpoint(checkpoint_file)

class SimCLRClassifier(nn.Module):
   def __init__(self, n_classes, freeze_base, embeddings_model_path, hidden_size=512):
       super().__init__()

       base_model = ImageEmbeddingModule.load_from_checkpoint(embeddings_model_path).model

       self.embeddings = base_model.embedding

       if freeze_base:
           print("Freezing embeddings")
           for param in self.embeddings.parameters():
               param.requires_grad = False

       self.classifier = nn.Linear(in_features=base_model.projection[0].in_features,
                     out_features=n_classes if n_classes > 2 else 1)

   def forward(self, X, *args):
       emb = self.embeddings(X)
       return self.classifier(emb)

class SimCLRClassifierModule(pl.LightningModule):
   def __init__(self, hparams):
       super().__init__()
       hparams = Namespace(**hparams) if isinstance(hparams, dict) else hparams
       self.hparams = hparams
       self.model = SimCLRClassifier(hparams.n_classes, hparams.freeze_base,
                                     hparams.embeddings_path,
                                     self.hparams.hidden_size)
       self.loss = nn.CrossEntropyLoss()

   def total_steps(self):
       return len(self.train_dataloader()) // self.hparams.epochs

   def preprocessing(seff):
       return transforms.Compose([
               transforms.ToTensor(),
               transforms.Normalize(mean=[0.485, 0.456, 0.406], std=[0.229, 0.224, 0.225]),
       ])

   def get_dataloader(self, split):
       return DataLoader(STL10(".", split=split, transform=self.preprocessing()),
                         batch_size=self.hparams.batch_size,
                         shuffle=split=="train",
                         num_workers=cpu_count(),
                        drop_last=False)

   def train_dataloader(self):
       return self.get_dataloader("train")

   def val_dataloader(self):
       return self.get_dataloader("test")

   def forward(self, X):
       return self.model(X)

   def step(self, batch, step_name = "train"):
       X, y = batch
       y_out = self.forward(X)
       loss = self.loss(y_out, y)
       loss_key = f"{step_name}_loss"
       tensorboard_logs = {loss_key: loss}

       return { ("loss" if step_name == "train" else loss_key): loss, 'log':
tensorboard_logs,
                       "progress_bar": {loss_key: loss}}

   def training_step(self, batch, batch_idx):
       return self.step(batch, "train")

   def validation_step(self, batch, batch_idx):
       return self.step(batch, "val")

   def test_step(self, batch, batch_idx):
       return self.step(Batch, "test")

   def validation_end(self, outputs):
       if len(outputs) == 0:
           return {"val_loss": torch.tensor(0)}
       else:
           loss = torch.stack([x["val_loss"] for x in outputs]).mean()
           return {"val_loss": loss, "log": {"val_loss": loss}}

   def configure_optimizers(self):
       optimizer = RMSprop(self.model.parameters(), lr=self.hparams.lr)
       schedulers = [
           CosineAnnealingLR(optimizer, self.hparams.epochs)
       ] if self.hparams.epochs > 1 else []
       return [optimizer], schedulers

hparams_cls = Namespace(
   lr=1e-3,
   epochs=5,
   batch_size=160,
   n_classes=10,
   freeze_base=True,
   embeddings_path="./efficientnet-b0-stl10-embeddings.ckpt",
   hidden_size=512
)
module = SimCLRClassifierModule(hparams_cls)
trainer = pl.Trainer(gpus=1, max_epochs=hparams_cls.epochs)
trainer.fit(module)

SimCLRClassifier is the custom module — it uses already existing embeddings and freezes the base model’s weights on demand. Note that SimCLRClassifier.embeddings is just the EfficientNet part of the previous network—the projection head has been discarded.

Now that we have built and trained an image classifier, let us train it and then evaluate its output:

def evaluate(data_loader, module):
   with torch.no_grad():
       progress = ["/", "-", "\\", "|", "/", "-", "\\", "|"]
       module.eval().cuda()
       true_y, pred_y = [], []
       for i, batch_ in enumerate(data_loader):
           X, y = batch_
           print(progress[i % len(progress)], end="\r")
           y_pred = torch.argmax(module(X.cuda()), dim=1)
           true_y.extend(y.cpu())
           pred_y.extend(y_pred.cpu())
       print(classification_report(true_y, pred_y, digits=3))
       return true_y, pred_y

_ = evaluate(module.val_dataloader(), module)

After we will obtain the Confusion Matrix with the results:

Conclusion

In this tutorial, we explored Google’s SimCLR pre-training framework. We defined the SimCLR model and its contrastive loss function step by step. We then used SimCLR's pre-training routine to build image embeddings using EfficientNet network architecture. Finally, we built the classifier on top of it.

Ready to Get Started?

Create an account in minutes or connect with our team to learn how Spell can accelerate your business.
